Advantages of the gravity metal detector QUICKTRON 03 R

  • Attractive price/performance ratio = very fast return on investment
  • Operating capacity up to 45 000 liters/hour
  • Automatic separation of all metals without the interruption of the material flow
  • Low height + compact dimensions = quick + easy installation
  • Ideal solution for plastic regrind

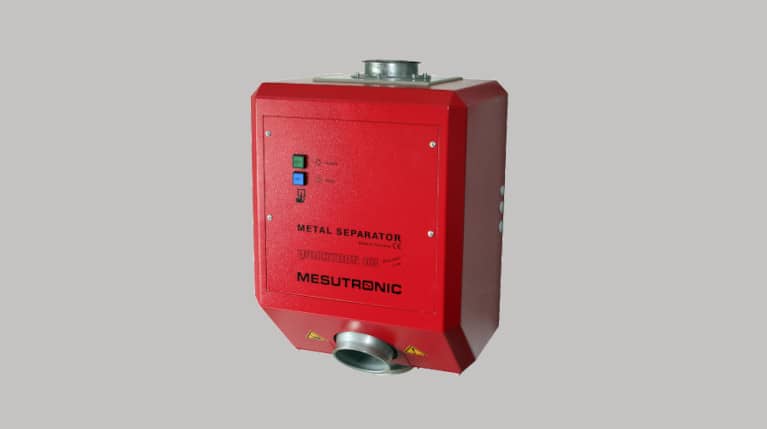

Gravity metal detector QUICKTRON 03 R

The cheapest fully automatic QUICKTRON 03 R gravity fed metal detector is equipped with a high-speed reject flap, allowing for very precise separation of metal particles. The ideal application area of this gravity fed metal separator is the production and processing of plastic granulates, plastic regrind, flakes etc. In addition, this gravity free-fall style metal detector separates not only loose metal objects (such as screws, nuts, fragments of machinery, wires, etc.) but also metal contaminants encapsulated in the processed plastic material. Thanks to digital signal processing, very good detection results are achieved. The robust detector design guarantees its long working life.

Optional equipment

The QUICKTRON 03 R gravity fall metal separator can be supplied with a wide range of additional equipment:

  • Signal units – beacon, buzzer
  • Special length of connecting cables
  • Air compressor
  • Compressed air tank
  • Self-monitoring - air pressure, reject flap
  • Reject counter

Detector sensitivity

The detector sensitivity depends on many parameters, such as the inlet opening diameter (the smaller the aperture diameter, the higher the detector sensitivity), the material speed, product density, temperature, humidity, etc.

In order to select the proper metal detector for your application, we recommend performing the test of your material. We will perform these tests for free, so please contact us to arrange the tests.

Scope of delivery

The delivery of the QUICKTRON 03 R gravity fed metal detector includes:

  • Detection head
  • Reject unit including pneumatic components, air pressure regulator, etc.
  • Control unit
  • Connection cables
  • Installation hardware
  • Instructions for use
