Medium series granulators

VESPA Medium series granulators are ideal for central or beside-the-press size reduction of sprues, moulded items, pipes, sheets atd. The rotor as well as the cutting chamber are easy to access, making cleaning and knife changes quick and effortless.

Main advantages

  • 6 rotor knives
  • 4 stator knives
  • SCHNEIDER ELECTRIC components
  • High quality knives
  • Easy accessibility and maintenance
  • Robust and compact design
  • Bearing housing outside the cutting chamber
  • Various feeding options

VESPA Medium series beside-the-press granulators are economical granulators for plastic recycling. The cutting design makes these products optimal for the grinding of medium-sized plastic parts (such as injection moulded parts, blow moulded parts, profiles, sheets etc.) in order to achieve high quality regrind. The granulators of the VESPA Medium series are available in input widths ranging from 420 mm to 820 mm and rotor diameters from 350 to 400 mm. The completely welded cutting chamber in conjunction with the ideal rotor design ensures optimal operation and universal application. The design of the product housing arranges for an easy and quick access to the cutting chamber during rotor and stator knife changes, servicing or screen changes.


Once the plastics (e. g. offcuts) are fed into the granulator, a series of rotating cutting knives mounted on the rotor shaft (powered by an electric motor) and stator knives, mounted on the lower half of cutting chamber break the plastics into smaller pieces. These granules afterwards pass through a screen which limits their maximum size (usually from 8 to 10 mm) and are collected e. g. for moulding. The integrated blower transports the dust and fines from the plastic regrind to the separation cyclone.

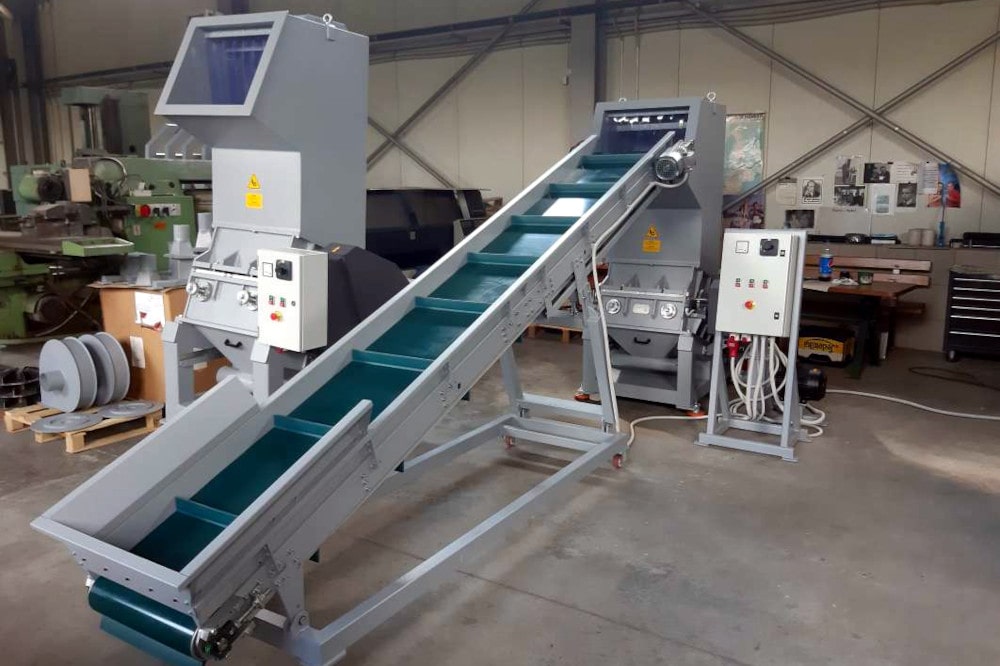

VESPA Medium-size granulators with a blower and a cyclone

ModelOutput*
kg/h
Rotor diameter
mm
Rotor speed
rpm
Rotor knives no/mmStator knives
no/mm
Drive power
kW
Blower
kW
Dimensions
mm
Input width
mm
Input height**
mm
Weight
kg
VESPA 35/40VGA 150-250 350 660 6x200 4x200 11.0 4.0 1180 х 780 х 1970 420 380 950
VESPA 35/50VGA 180-300 350 660 6x250 4x250 15.0 4.0 1180 х 880 х 1970 520 380 1150
VESPA 30/60VGA 250-450 300 660 6x300 4x300 18.V 4.0 1210 х 1000 х 1925 620 400 1500
VESPA 40/60VGA 300-500 400 590 6x300 4x300 30.0 4.0 (5.5) 1540 х 1190 х 2410 620 560 1760
VESPA 40/80VGA 400-600 400 555 6x400 4x400 30.0 5,5 1540 x 1390 x 2410 820 560 1960

*Output values are approximate only and dependent on the application. Variables such as the material type, form and temperature, feeding method, rotor configuration, knife sharpness and design, screen size, as well as output system influence on the production capacity of the equipment.

**This dimension can be changed
