Small series granulators

VESPA Small series beside-the-press granulators are ideal for grinding smaller rejected plastic parts and plastic waste (primarily from injection and blow moulding processes). The rotor as well as the cutting chamber are easy to access, making cleaning and knife changes quick and effortless.

Main advantages

  • 6 rotor knives
  • 4 stator knives
  • SCHNEIDER ELECTRIC components
  • Robust and compact design
  • Bearing housing is outside of the cutting chamber
  • Various feeding options

VESPA Small series beside-the-press granulators are economical granulators for plastic recycling. The cutting design makes these products optimal for the grinding of small plastic parts (such as plastic offcuts and rejects) in order to achieve high quality regrind. The granulators of the VESPA Small series are available in input widths ranging from 225 mm to 460 mm and rotor diameters from 160 to 250 mm. The completely welded cutting chamber in conjunction with the ideal rotor design ensures optimal operation and universal application. The design of the product housing arranges for an easy and quick access to the cutting chamber during rotor and stator knife changes, servicing or screen changes.

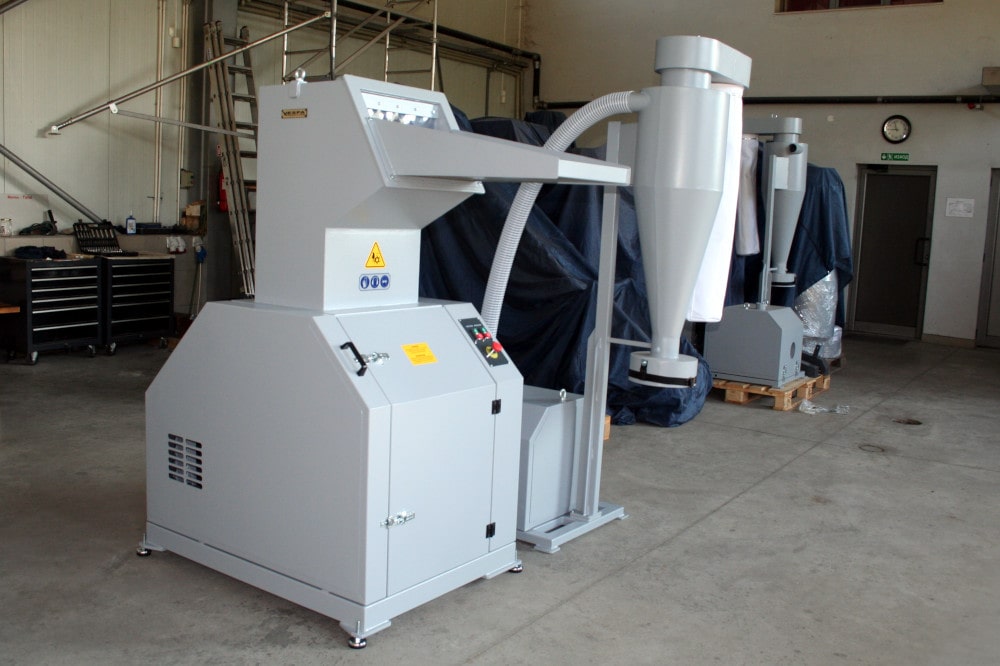

Once the plastics (e. g. offcuts) are fed into the granulator, a series of rotating cutting knives mounted on the rotor shaft (powered by an electric motor) and stator knives, mounted on the lower half of cutting chamber break the plastics into smaller pieces. These granules afterwards pass through a screen which limits their maximum size (usually from 7 to 8 mm) and are collected in the box under the machine e. g. for moulding. Each granulator can be equipped with a blower and a separation cyclone including a station for bag filling.

VESPA Small granulators without a blower and/or a cyclone

ModelOutput*
kg/h
Rotor diameter
mm
Rotor speed
rpm
Rotor knives no/mmStator knives
no/mm
Drive power
kW
Dimensions
mm
Input width
mm
Input height**
mm
Weight
kg
VESPA 16/22VGA 30-60 160 920 6x110 4x110 4 835 х 490 х 1275 225 220 230
VESPA 18/32VGA 60-80 180 970 6x160 4x160 5,5 930 x 600 x 1420 325 260 400
VESPA 18/45VGA 80-120 180 870 6x225 4x225 7,5 930 х 730 х 1420 460 260 460
VESPA 25/32VGA 80-120 250 870 6x160 4x160 7,5 1145 х 600 х 1680 330 310 480
VESPA 25/40VGA 100-140 250 870 6x200 4x200 7,5 1145 х 680 х 1680 410 310 560

*Output values are approximate only and dependent on the application. Variables such as the material type, form and temperature, feeding method, rotor configuration, knife sharpness and design, screen size, as well as output system influence on the production capacity of the equipment.

**This dimension can be changed
